Description

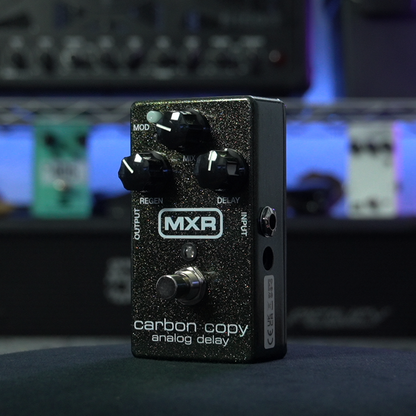

mxr m169 carbon copy analog delay guitar effects pedal MXR M169 CARBON COPY – O'Brian GuitarworksMXR CARBON COPY ANALOG DELAY DESCRIPTION 100% analog bucket brigade technology Up to 600ms of delay with switchable modulation Internally adjustable modulation circuit True bypass Push in the MOD switch to add modulation to your delay signal. Modulation width and speed can be adjusted internally (remove bottom plate) with a 3mm slotted screwdriver CONTROLS MOD switch toggles modulation on off (blue LED indicates on) MIX knob controls blend of wet and
MXR CARBON COPY ANALOG DELAY
DESCRIPTION
• 100% analog bucket-brigade technology
• Up to 600ms of delay with switchable modulation
• Internally adjustable modulation circuit
• True bypass
• Push in the MOD switch to add modulation to your delay signal.
Modulation width and speed can be adjusted internally
(remove bottom plate) with a 3mm slotted screwdriver
CONTROLS
MOD switch toggles modulation on/off (blue LED indicates on)
MIX knob controls blend of wet and dry signals
REGEN knob sets number of repeats
DELAY knob sets delay time
FOOTSWITCH toggles effect on/bypass (blue LED indicates on)SPECIFICATIONS
Input Impedance 1 MΩ
Output Impedance 1 kΩ
Max Input Level +5 dBV, 500 Hz
Max Output Level +8 dBV Noise Floor*
Mix at Max CW -96 dBV
Mix at Max CCW -104 dBV
Delay Distortion <1%, 1 kHz, -5 dBV Input
Delay Time 20 ms to 600 ms
Noise Reduction 2:1 ratio
Modulation Speed 0.2 Hz to 2.2 Hz
Bypass True Hardwire
Current Draw 26 mA
Power Supply 9 volts DC
*Regen at max CCW, A-weighted
